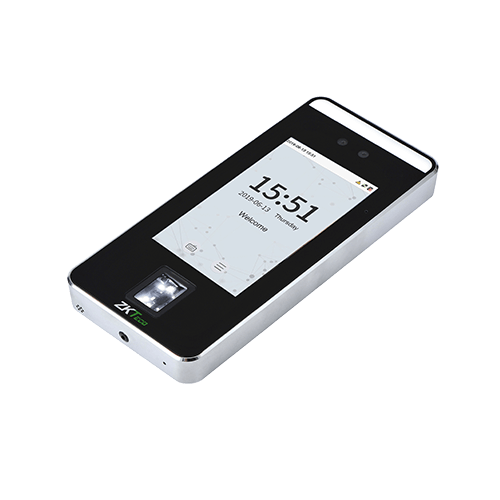

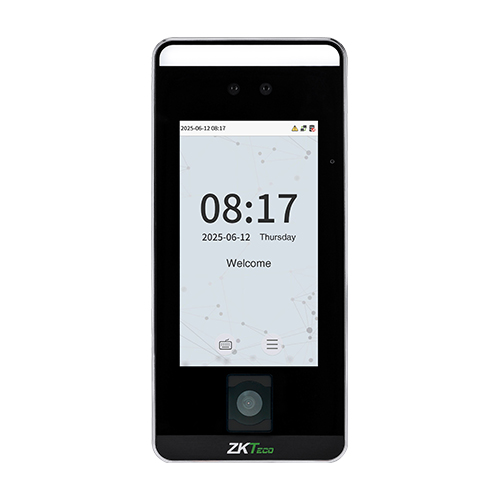

SpeedFace V5L Face recognition High Speed Biometric Device

Description

Product Specifications

• ModelSpeedFace-V5L
  SpeedFace-V5L-RFID
  SpeedFace-V5L[QR]
• Order IDSpeedFace-V5L: AC01-SP14H-P47
  SpeedFace-V5L-RFID: AC01-SP12H-P47
  SpeedFace-V5L[QR]: AC01-SP15H-P47
• Display5″@ ISP Color LCD Screen (720*1280)
• CameraBinocular Camera @ 2MP WDR
• Operation SystemLinux
• HardwareSpeedFace-V5L: CPU: Quad Core A55 @1.2GHz; RAM: 1GB; ROM: 8GB; Supplement Light: Yes; Virtual Keypad: 16 Keys; Fingerprint Sensor: Z-ID; Casing Color: Metallic silver
  SpeedFace-V5L-RFID: CPU: Quad Core A55 @1.2GHz; RAM: 1GB; ROM: 8GB; Supplement Light: Yes; Virtual Keypad: 16 Keys; Casing Color: Metallic silver
  SpeedFace-V5L[QR]: CPU: Quad Core A55 @1.2GHz; RAM: 1GB; ROM: 8GB; Supplement Light: Yes ; Physical Keypad: 16 Keys; Casing Color: Metallic silver
• Authentication MethodSpeedFace-V5L: Face / Fingerprint / Palm (Optional) / Card / Password (Virtual Keypad)
  SpeedFace-V5L-RFID: Face / Palm (Optional) / Card / Password (Virtual Keypad)
  SpeedFace-V5L[QR]: Face / Palm (Optional) / Card / Password (Virtual Keypad)
• Fingerprint Template CapacitySpeedFace-V5L: 10,000 (1:N)
  SpeedFace-V5L-RFID: /
  SpeedFace-V5L[QR]: /
• Face Template Capacity10,000 (1:N)
• Card Capacity10,000 (1:N)
• Palm Template Capacity3,000 (1:N) (Optional)
• User Capacity10,000 (1:N)
• Transaction Capacity200,000 (1:N)
• Max. User Password Length8 Digits
• Biometric Authentication SpeedSpeedFace-V5L: less than 0.5 sec (Fingerprint); less than 0.35 sec (Facial authentication) ; less than 0.35 Sec (Palm)
  SpeedFace-V5L-RFID: less than 0.35 sec (Facial authentication); less than 0.35 Sec (Palm)
  SpeedFace-V5L[QR]: less than 0.35 sec (Facial authentication); less than 0.35 Sec (Palm)
• Touchless Biometric Recognition Distance30cm to 170cm (Facial authentication)
  15cm to 40cm (Palm authentication)
• False Acceptance Rate (FAR) %SpeedFace-V5L:≤0.01% (Facial authentication) ; ≤0.0001% (Fingerprint); ≤ 0.01% (Palm)
  SpeedFace-V5L-RFID / SpeedFace-V5L[QR]: ≤0.01% (Facial authentication) ; ≤ 0.01% (Palm)
• False Rejection Rate (FRR) %SpeedFace-V5L: ≤0.02% (Facial authentication) ; ≤ 0.01% (Fingerprint); ≤ 0.17% (Palm)
  SpeedFace-V5L-RFID / SpeedFace-V5L[QR]: ≤0.02% (Facial authentication) ; ≤ 0.17% (Palm)
• Biometric AlgorithmSpeedFace-V5L: ZKFace V3.6; ZKFingerprint V13.0 (Standard) / V10.0 (Optional) ZKPalmVein V20.1
  SpeedFace-V5L-RFID \ SpeedFace-V5L[QR]: ZKFace V3.6; ZKPalmVein V20.1
• Card TypeSpeedFace-V5L:
  ID Card@125kHZ (Optional); IC Card@13.56 MHz (Optional)

  Optional Multi-Tech Module:
  Module1: ID & IC & DESFire EV1 / EV2 & Felica (125 kHz & 13.56 MHz Dual Frequency)
  Module 2: ID & IC & DESFire EV1/EV2 & FeliCa & HID Prox & HID iClass (125 kHz & 13.56 MHz Dual Frequency)

  SpeedFace-V5L-RFID \ SpeedFace-V5L[QR]:
  ID Card@125kHZ (Standard); IC Card@13.56 MHz (Optional)

  Optional Multi-Tech Module:
  Module1: ID & IC & DESFire EV1 / EV2 & Felica (125 kHz & 13.56 MHz Dual Frequency)
  Module 2: ID & IC & DESFire EV1/EV2 & FeliCa & HID Prox & HID iClass (125 kHz &
  13.56 MHz Dual Frequency)

• QR CodeSpeedFace-V5L / SpeedFace-V5L-RFID: Dynamic OR codes on the ZKBio CVAccess mobile application (Optional) (Via Face Camera)
  SpeedFace-V5L[QR]: Dynamic QR codes on the ZKBio CVAccess mobile application (Standard) (Via QR Module)
• CommunicationTCP/IP*1
  Wi-Fi (IEEE802.1b/g/n/a/ac/ax) @ 2.4 GHz / 5 GHz (Optional)
  Wiegand (Input & Output)*1
  RS485: ZKTeco RS485*1*
  Aux Inputs *1, Aux Outputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm*1
• Standard FunctionsADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Record Query, Tamper Switch Alarm, Multiple Verification Methods, T9 Keyboard (Input), AC Push and TA Push Protocol Switch, HTTPs / SSH Backend Access, Mask Detection
• Optional FunctionsVideo Door Phone: SIP Client (Version2.0), ONVIF (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), Wi-Fi, Webserver
• Video IntercomVideo Intercom(ZKTeco Private Protocol via TCP/lP)
  Support Devices: Standalone Terminal: SpeedFace-V5L(Only ZAM230 Platform); Indoor Monitor: VT07-B01, VT07-B01-W

  Video Intercom (Standard SIP Protocol)
  Support Devices:
  Standalone Terminal: SpeedFace-V5L(Only ZAM230 Platform); Indoor Monitor: VT07-B22L, VT07-B26L-W; Software: ZKBio CVAccess, BioTalk Pro; Mobile App: ZKBio Zlink, ZKBio Zexus

• Access Control InterfaceRS485 (DM10 Controller 1 Door Expansion / RS485 Card Reader / Biometric Reader)
• Power SupplyDC 12V 3A
• Operating Temperature-10°C to 45°C (14°F to 113°F)
• Operating Humidity10% to 90% RH (Non-condensing)
• Dimensions202.93mm*91.93mm*21.5mm (L*W*H)
• Gross Weight1.3 Kg
• Net Weight0.6 Kg
• Supported SoftwareOn-Premise Software: ZKBio CVAccess (AC PUSH) & ZKBio Time (TA PUSH)
  Cloud-based Software: ZKBio Zlink (Supports Web Portal & Mobile App)
• InstallationWall-mount (Compatible with Asian Gang-box / Single Gang-Box)
• CertificationsISO14001, ISO9001, CE, FCC
